12V TAPS

Wiring your tap

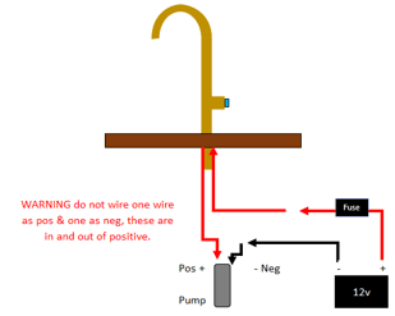

Here we shall explain how to connect a 12v tap to a submersible pump

Step1

Connect one of the wires to the positive of the pump.

Step 2

Connect the other wire to the positive power supply

(ensure a low amp fuse is used, ideally 2 amp).

Step 3

The negative of the pump goes to ground or negative on battery.

WARNING

Do not wire one wire as positive and one wire as negative,

these are both positive wires (in & out)
