Easy inline water-flow control with quick-connect fittings

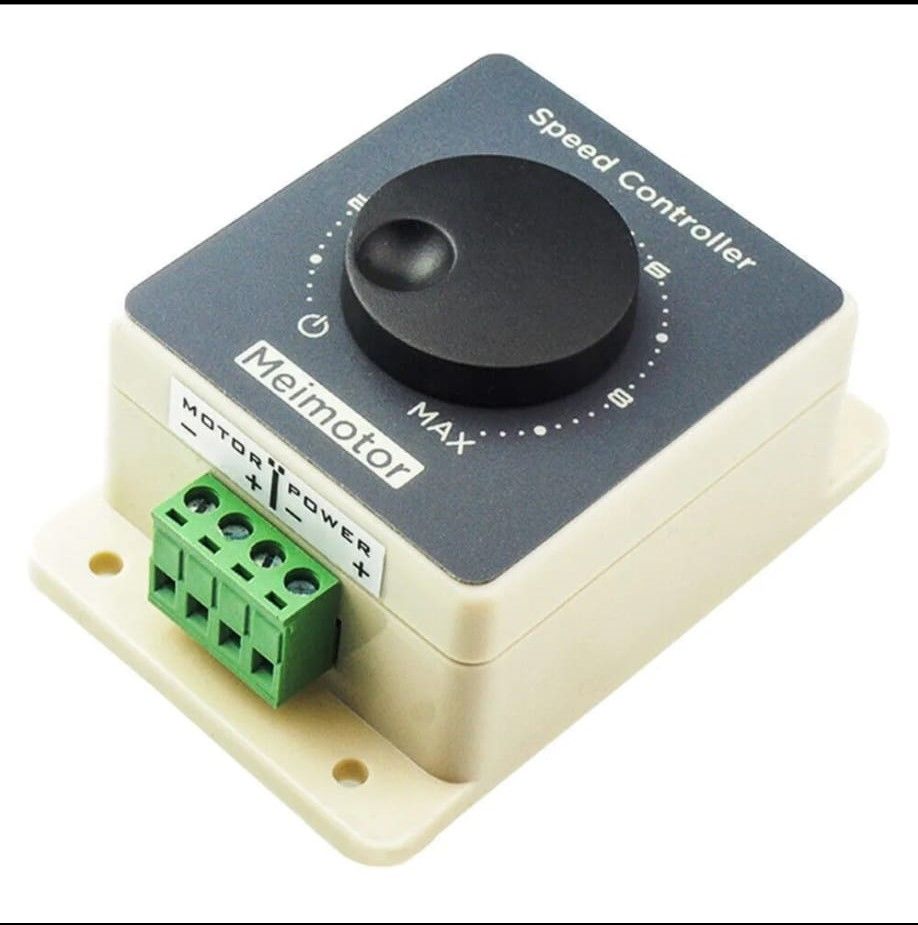

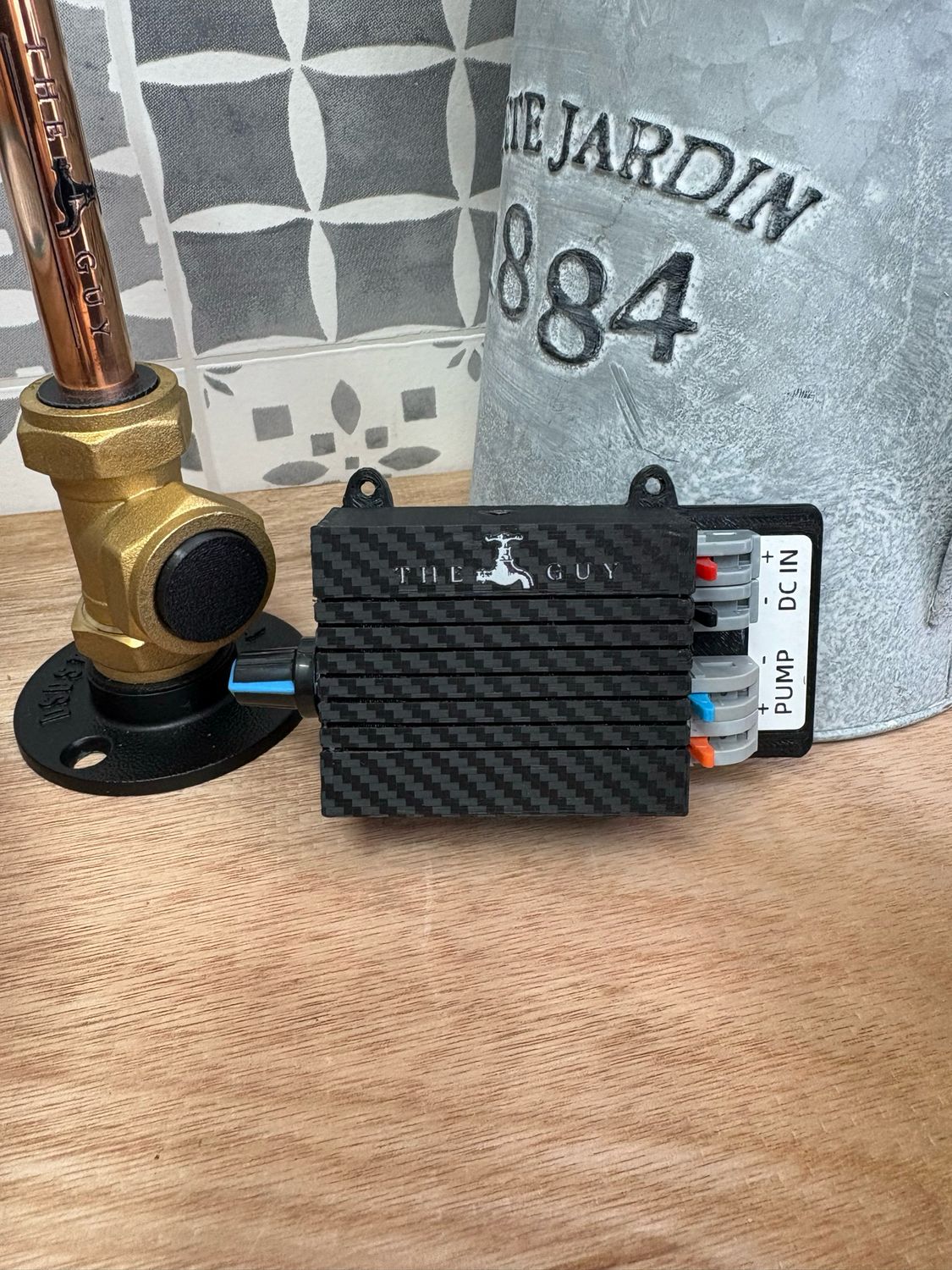

Take control of your water flow with this compact DC pump speed controller. By slowing the pump, you can smoothly reduce the water output to suit your needs. Quick-connect fittings make it a simple addition to a compatible pump and tap power-supply setup.
Key Features
Adjustable water flow:
Reduces pump speed for precise control of water output.
Smooth PWM control:
Adjusts compatible DC loads continuously from 1% to 100% duty cycle.
Compact design:
Easy to incorporate into compatible water-pump systems.
Wide voltage compatibility:
Suitable for DC 5V–35V input.
Easy Connection
Connect your compatible DC water pump to the controller.
Connect the controller to the DC power supply from your tap system.
Turn the control to adjust the pump speed and water flow.
Technical Specifications
Specification
Details
Operating voltage
DC 5V–35V
Continuous current
Up to 5A
Maximum control power
90W
Adjustable range
1%–100% PWM duty cycle
PWM frequency
20kHz
Quiescent current
7µA (standby)
Dimensions
11.3 × 2.6 × 6.8cm (L × D × H)
Important Safety Information
DC POWER ONLY:
Do not connect this controller directly to an AC supply. Doing so will damage the device. Confirm that the voltage, current and power requirements of your pump are within the controller ratings before installation.
Package contents: 1 × 12V water-pump speed and flow adjuster.
