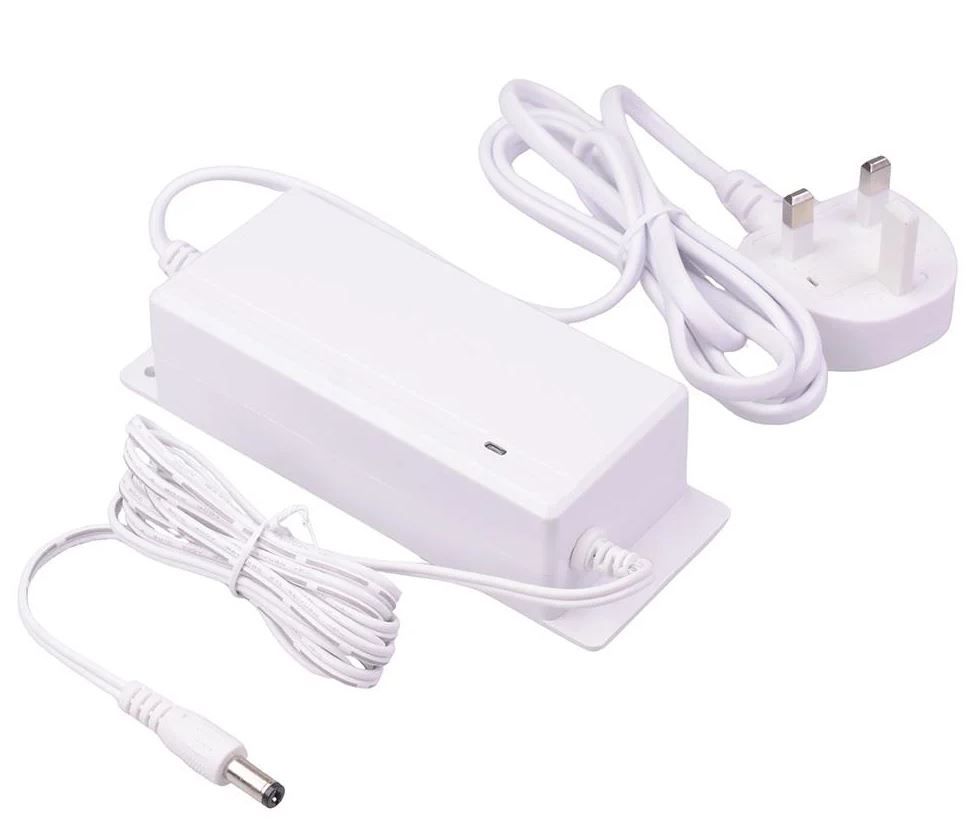

The Tap Guy Mains to 12V Power Supply with Wiring Module
Compatible with all The Tap Guy 12V taps
Product Description
From The Tap Guy, this mains-to-12V power supply and wiring module allows you to run a compatible 12V tap and pump from mains electricity. It is compatible with all The Tap Guy 12V taps. The wiring module enables quick and easy connection of the pump and tap without the need for crimp connectors. The module also features a built-in, replaceable 3A blade fuse. The power unit provides a single, regulated constant-voltage 12V DC output with no minimum load, supporting requirements from 0 A (0 W) up to 5 A (60 W). It is ideal for workshops, beauty salons, and other work areas without a fixed or plumbed-in water supply, provided the tap-and-pump system is connected to a suitable separate water container or source. Please confirm the pump voltage, combined current or power requirement, polarity, connector type, and wiring arrangement before purchase.
Key Features
Compatible with all The Tap Guy 12V taps
Quick and easy pump-and-tap connections without crimp connectors
Provides a convenient alternative to a 12V battery supply
Ideal for workshops, beauty salons, and work areas without a fixed water supply
Built-in, replaceable 3A blade fuse
Regulated, constant-voltage 12V DC output
No minimum load: suitable from 0 A (0 W) to 5 A (60 W)
220–240V AC input for use in the UK and Europe
CE and UKCA safety marked and approved
Short-circuit and overload protection
IP20 rated for indoor use only
Meets current efficiency legislation with very low no-load power consumption
1.5 m input and output cable lengths
Specifications
Input voltage
220–240V AC
Output voltage
12V DC, regulated constant voltage
Maximum output current
0–5 A; no minimum load
Maximum output power
0–60 W
Connector / termination
Wiring module included; UK mains plug; 1.5 m input and output cables
Fuse protection in module
Built-in, replaceable 3A blade fuse
Safety approvals
CE and UKCA marked and approved
Protection
Short-circuit and overload protection
Ingress rating
IP20 — indoor use only
Efficiency
Meets current efficiency legislation; very low no-load power consumption
Condition
New
Package Contents
1 × mains to 12V power supply
1 × wiring module
Fixings and instructions included
Important Information
Compatibility:
Compatible with all The Tap Guy 12V taps and suitable 12V pumps. It supplies electrical power only and does not itself provide or store water; a suitable separate water container or source is required. Check that the pump and any connected components do not exceed the supply rating. Confirm polarity and all connection requirements before use.
Installation and safety:
IP20 rated for indoor use only. Mains wiring can be dangerous. Installation should be completed by a competent person and must comply with applicable electrical regulations. Isolate the power before connecting, altering wiring, or replacing the fuse. Replace the blade fuse only with the same type and 3A rating.
